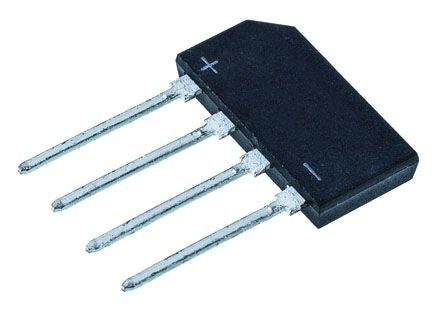

HY Electronic Corp 2GBJ10, Bridge Rectifier, 2A 1000V, 4-Pin 2GBJ [2GBJ10]; 923-5315
0₫
Mã kho: 9235315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 2A |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | 2GBJ |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 1mA |
| Length | 20.6mm |
| Width | 3.6mm |
| Dimensions | 20.6 x 3.6 x 11.2mm |
| Height | 11.2mm |
