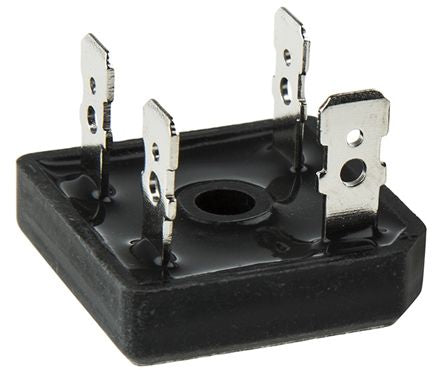

Fagor Electronica FB2510-B500/440-25, Bridge Rectifier, 25A 1000V, 4-Pin Power [FB2510-B500/440-25]; 123-1515
0₫
Mã kho: 1231515
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 25A |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Through Hole |
Package Type | Power |
Pin Count | 4 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 300A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 5µA |
Length | 29mm |
Dimensions | 29 x 29 x 7.87mm |
Height | 7.87mm |
Width | 29mm |
