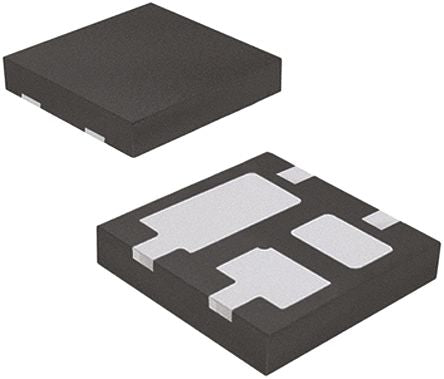

Diodes Inc SBR05M60BLP-7, Bridge Rectifier, 500mA 60V, 4-Pin DFN4 [SBR05M60BLP-7]; 922-8585
by DiodesZetex
0₫
Mã kho: 9228585
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 500mA |
| Peak Reverse Repetitive Voltage | 60V |
| Mounting Type | Surface Mount |
| Package Type | DFN4 |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 8A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 490mV |
| Peak Reverse Current | 20mA |
| Length | 3.1mm |
| Dimensions | 3.1 x 3.1 x 0.58mm |
| Width | 3.1mm |
| Height | 3.1mm |
