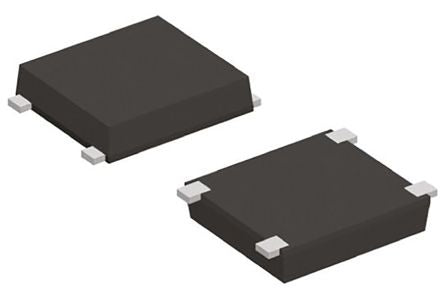

Diodes Inc MSB25MH-13, Bridge Rectifier, 2.5A 1000V, 4-Pin MSBL [MSB25MH-13]; 146-4736
by DiodesZetex
0₫
Mã kho: 1464736
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 2.5A |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Surface Mount |
| Package Type | MSBL |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 80A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 6.7mm |
| Height | 1.42mm |
| Width | 7.4mm |
| Dimensions | 6.7 x 7.4 x 1.42mm |
