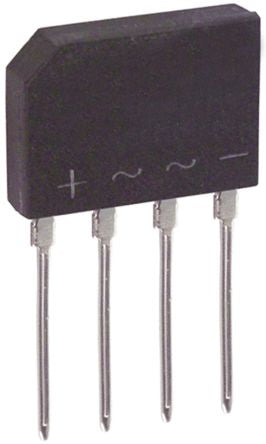

Diodes Inc KBP10G, Bridge Rectifier, 1.5A 1000V, 4-Pin KBP [KBP10G]; 146-0434
by DiodesZetex
0₫
Mã kho: 1460434
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 1.5A |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | KBP |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 40A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 14.75mm |
| Dimensions | 14.75 x 3.65 x 10.6mm |
| Width | 3.65mm |
| Height | 10.6mm |
