![DiodesZetex GBU604 1223291](http://nguyenxuong.com/cdn/shop/products/R8234100-01_12d25b8b-15a2-4a14-8247-1c0e8c05aeda_254x444.jpg?v=1594029281)

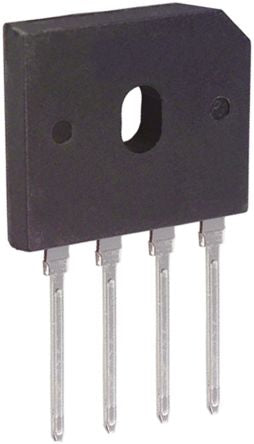

Diodes Inc GBU604, Bridge Rectifier, 6A 400V, 4-Pin GBU [GBU604]; 122-3291
by DiodesZetex
0₫
Mã kho: 1223291
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 6A |
Peak Reverse Repetitive Voltage | 400V |
Mounting Type | Through Hole |
Package Type | GBU |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 175A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1V |
Peak Reverse Current | 500µA |
Length | 22.3mm |
Dimensions | 22.3 x 3.56 x 18.8mm |
Width | 3.56mm |
Height | 18.8mm |
