![DiodesZetex GBJ2510-F 9228402](http://nguyenxuong.com/cdn/shop/products/F7514436-01_996e7528-87cb-45a1-9dd3-e4649279ff5b_444x230.jpg?v=1593781858)

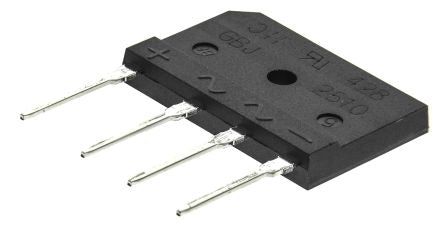

Diodes Inc GBJ2510-F, Bridge Rectifier, 25A 1000V, 4-Pin GBJ [GBJ2510-F]; 922-8402
by DiodesZetex
0₫
Mã kho: 9228402
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 25A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Through Hole |
Package Type | GBJ |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 350A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -65 °C |
Peak Forward Voltage | 1.05V |
Peak Reverse Current | 500µA |
Length | 30.3mm |
Dimensions | 30.3 x 4.8 x 20.3mm |
Width | 4.8mm |
Height | 20.3mm |
