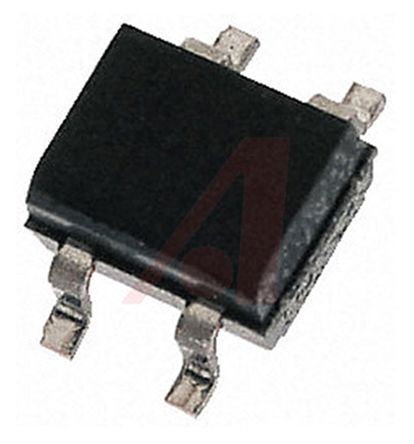

COMCHIP TECHNOLOGY CDBHD140L-G, Bridge Rectifier, 1A 40V, 4-Pin TO-269AA [CDBHD140L-G]; 906-6703
0₫
Mã kho: 9066703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 40V |
| Mounting Type | Surface Mount |
| Package Type | TO-269AA |
| Pin Count | 4 |
| Diode Technology | Schottky |
| Peak Non-Repetitive Forward Surge Current | 30A |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 440mV |
| Peak Reverse Current | 20mA |
| Length | 4.9mm |
| Junction Capacitance | 250pF |
| Width | 4.2mm |
| Height | 2.7mm |
| Dimensions | 4.9 x 4.2 x 2.7mm |
