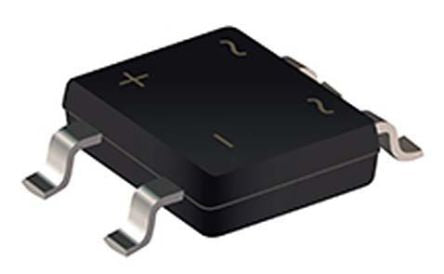

Bourns CDTO269-BR1190L, Bridge Rectifier, 1A 190V, 4-Pin TO-269AA [CDTO269-BR1190L]; 150-1552
by Bourns
0₫
Mã kho: 1501552
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 1A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 190V |
| Mounting Type | Surface Mount |
| Package Type | TO-269AA |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 75A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -50 °C |
| Peak Forward Voltage | 950mV |
| Peak Reverse Current | 5µA |
| Length | 4.7mm |
| Height | 1.5mm |
| Width | 3.9mm |
| Dimensions | 4.7 x 3.9 x 1.5mm |
