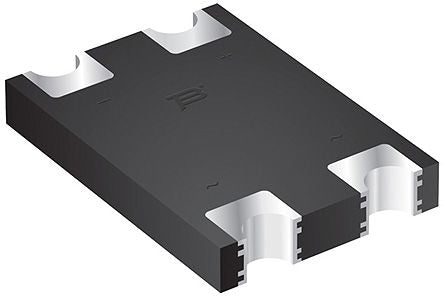

Bourns CD-MBL210S, Bridge Rectifier, 2A 1000V, 4-Pin SMT [CD-MBL210S]; 126-1767
by Bourns
0₫
Mã kho: 1261767
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 2A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Surface Mount |
| Package Type | SMT |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 50A |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 5µA |
| Length | 5.9mm |
| Dimensions | 5.9 x 5.4 x 1.35mm |
| Junction Capacitance | 25pF |
| Width | 5.4mm |
| Height | 1.35mm |
