![Bourns CD-HD01 1261770](http://nguyenxuong.com/cdn/shop/products/R1261770-01_444x296.jpg?v=1593989753)

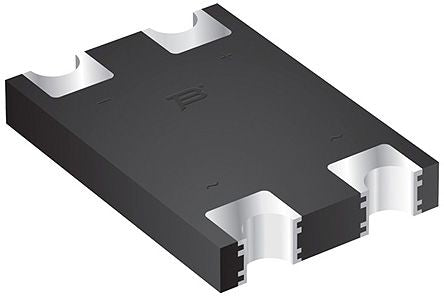

Bourns CD-HD01, Bridge Rectifier, 1A 100V, 4-Pin SMT [CD-HD01]; 126-1770
by Bourns
0₫
Mã kho: 1261770
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 1A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 100V |
Mounting Type | Surface Mount |
Package Type | SMT |
Pin Count | 4 |
Diode Technology | Schottky |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 30A |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 850mV |
Peak Reverse Current | 200µA |
Length | 6.25mm |
Dimensions | 6.25 x 4.85 x 1.22mm |
Width | 4.85mm |
Height | 1.22mm |
Junction Capacitance | 250pF |
