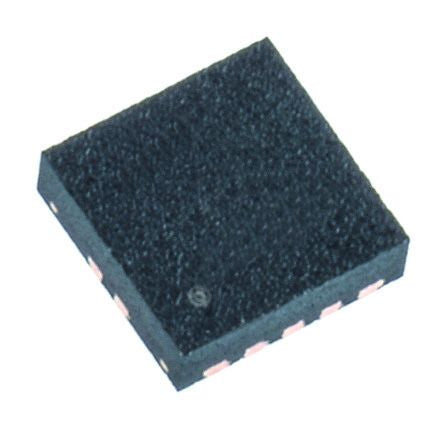

Texas Instruments TPS61080DRCT, Boost Converter, Step Up 200mA Adjustable, 2.5 → 27 V, 1200 kHz 10-Pin, SON [TPS61080DRCT]; 389-312
0₫
Mã kho: 389312
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 200mA |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Package Type | SON |
| Pin Count | 10 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1200 kHz |
| Switching Regulator | Yes |
| Efficiency | 0.87 |
| Dimensions | 3 x 3 x 0.9mm |
| Height | 0.9mm |
| Maximum Output Voltage | 27 V |
| Maximum Operating Temperature | +85 °C |
| Length | 3mm |
| Maximum Input Voltage | 6 V |
| Width | 3mm |
| Minimum Input Voltage | 2.5 V |
| Minimum Output Voltage | 2.5 V |
| Minimum Operating Temperature | -40 °C |
