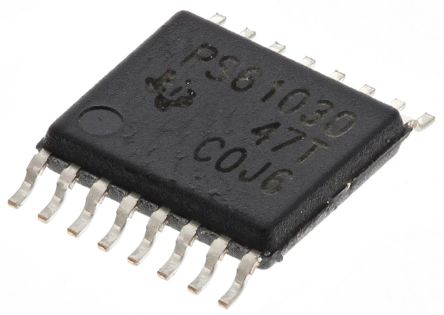

Texas Instruments TPS61030PWP, Boost Converter, Step Up 1A Adjustable, 600 kHz 16-Pin, HTSSOP [TPS61030PWP]; 162-4898
0₫
Mã kho: 1624898
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 1A |
| Number of Outputs | 1 |
| Line Regulation | 0.006 |
| Load Regulation | 0.006 |
| Mounting Type | Surface Mount |
| Package Type | HTSSOP |
| Pin Count | 16 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 600 kHz |
| Switching Regulator | Yes |
| Efficiency | 0.96 |
| Dimensions | 5 x 4.4 x 1.15mm |
| Height | 1.15mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Output Voltage | 1.8 V |
| Length | 5mm |
| Minimum Operating Temperature | -40 °C |
| Width | 4.4mm |
| Maximum Input Voltage | 5.5 V |
| Minimum Input Voltage | 1.8 V |
| Maximum Output Voltage | 5.5 V |
