![Texas Instruments TLV61220DBVR 8124078](http://nguyenxuong.com/cdn/shop/products/F8124078-01_b3db0559-9409-48d5-9bd5-817835b4356a_444x169.jpg?v=1593776850)

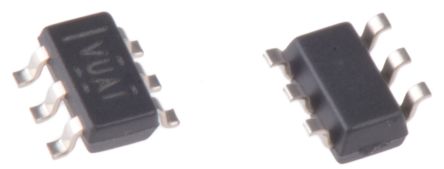

Texas Instruments TLV61220DBVR, Boost Converter, Step Up 400mA Adjustable, 1.8 → 5.5 V, 2000 kHz 6-Pin, SOT-23 [TLV61220DBVR]; 812-4078
0₫
Mã kho: 8124078
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Regulator Function | Step Up |
Maximum Output Current | 400mA |
Number of Outputs | 1 |
Line Regulation | 0.005 |
Load Regulation | 0.005 |
Mounting Type | Surface Mount |
Package Type | SOT-23 |
Pin Count | 6 |
Output Type | Adjustable |
Maximum Switching Frequency | 2000 kHz |
Switching Regulator | Yes |
Dimensions | 3.05 x 1.75 x 1.3mm |
Height | 1.3mm |
Minimum Operating Temperature | -40 °C |
Maximum Output Voltage | 5.5 V |
Minimum Input Voltage | 0.7 V |
Maximum Input Voltage | 5.5 V |
Length | 3.05mm |
Width | 1.75mm |
Maximum Operating Temperature | +85 °C |
Minimum Output Voltage | 1.8 V |
