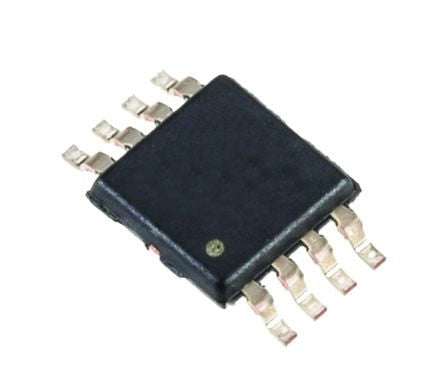

Texas Instruments LMR61428XMM/NOPB, Boost Converter, Step Up 2.85A Adjustable, 2 MHz 8-Pin, VSSOP [LMR61428XMM/NOPB]; 162-9817
0₫
Mã kho: 1629817
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 2.85A |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Package Type | VSSOP |
| Pin Count | 8 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 2 MHz |
| Switching Regulator | Yes |
| Efficiency | 0.87 |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Height | 0.95mm |
| Minimum Output Voltage | 1.24 V |
| Width | 3.1mm |
| Maximum Output Voltage | 14 V |
| Maximum Operating Temperature | +85 °C |
| Length | 3.1mm |
| Minimum Input Voltage | 1.2 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Input Voltage | 14 V |
