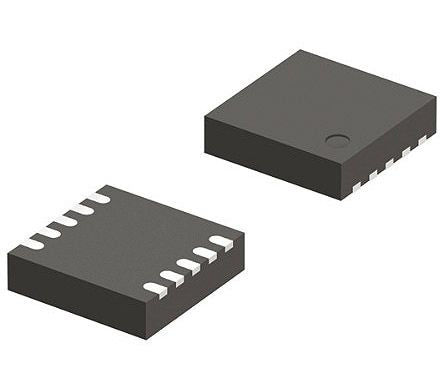

ON Semiconductor NCP1422MNR2G, Boost Converter, Boost Converter 800mA Adjustable, 1.2 MHz 10-Pin, DFN [NCP1422MNR2G]; 161-2614
0₫
Mã kho: 1612614
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Boost Converter |
| Maximum Output Current | 800mA |
| Number of Outputs | 1 |
| Line Regulation | 1 mV/V |
| Load Regulation | 1 mV/V |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 10 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1.2 MHz |
| Switching Regulator | Yes |
| Efficiency | 0.94 |
| Dimensions | 3 x 3 x 1.95mm |
| Height | 1.95mm |
| Maximum Operating Temperature | 85 °C |
| Minimum Output Voltage | 1.5 V |
| Length | 3mm |
| Maximum Input Voltage | 5 V |
| Width | 3mm |
| Minimum Input Voltage | 1 V |
| Maximum Output Voltage | 5 V |
| Minimum Operating Temperature | -40 °C |
