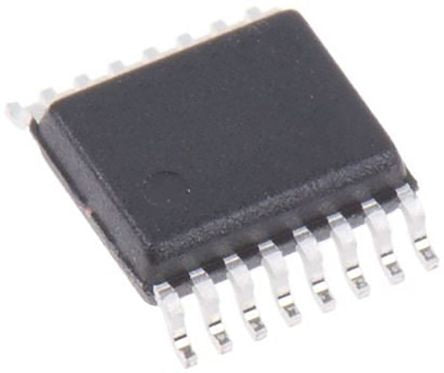

Maxim MAX1705EEE+, DC to DC Boost Converter, Step Up 800mA Adjustable, 2.5 → 5.5 V, 400 kHz 16-Pin, QSOP [MAX1705EEE+]; 540-3145
0₫
Mã kho: 5403145
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 800mA |
| Number of Outputs | 1 |
| Load Regulation | 0.0065 |
| Mounting Type | Surface Mount |
| Package Type | QSOP |
| Pin Count | 16 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 400 kHz |
| Switching Regulator | Yes |
| Efficiency | 0.96 |
| Dimensions | 4.98 x 3.99 x 1.55mm |
| Height | 1.55mm |
| Maximum Operating Temperature | +85 °C |
| Length | 4.98mm |
| Maximum Output Voltage | 5.5 V |
| Maximum Input Voltage | 5.5 V |
| Minimum Input Voltage | 0.7 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage | 2.5 V |
| Width | 3.99mm |
