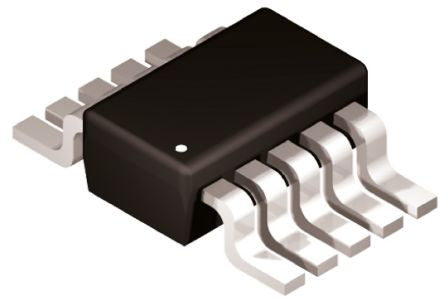

Maxim MAX1676EUB+, Boost Converter, Step Up 420mA Adjustable/Fixed 10-Pin, μMAX [MAX1676EUB+]; 165-9014
0₫
Mã kho: 1659014
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 420mA |
| Number of Outputs | 1 |
| Line Regulation | 2.5 mV/V |
| Load Regulation | 15 mV |
| Mounting Type | Surface Mount |
| Package Type | μMAX |
| Pin Count | 10 |
| Output Type | Adjustable, Fixed |
| Efficiency | 0.9 |
| Dimensions | 3.05 x 3.05 x 0.95mm |
| Height | 0.95mm |
| Minimum Output Voltage | 2 V |
| Maximum Operating Temperature | +85 °C |
| Length | 3.05mm |
| Minimum Input Voltage | 0.7 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Input Voltage | 5.5 V |
| Width | 3.05mm |
| Maximum Output Voltage | 5.5 V |
