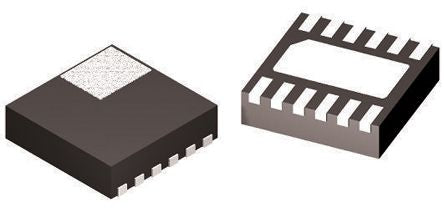

Linear Technology LTC3458LEDE#PBF, Boost Converter, Step Up 2.1A Adjustable, 2 → 6 V, 1.15 MHz 12-Pin, DFN [LTC3458LEDE#PBF]; 851-4692
0₫
Mã kho: 8514692
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 2.1A |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 12 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1.15 MHz |
| Dimensions | 4 x 3 x 0.7mm |
| Height | 0.7mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage | 2 V |
| Maximum Output Voltage | 6 V |
| Minimum Input Voltage | 1.5 V |
| Width | 3mm |
| Maximum Input Voltage | 6 V |
| Length | 4mm |
