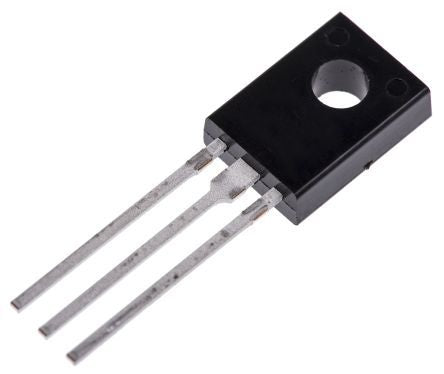

Taiwan Semiconductor TSB772CK C0G PNP Transistor, 3 A, -30 V, 3-Pin TO-126 [TSB772CK C0G]; 184-0445
0₫
Mã kho: 1840445
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | PNP |
Maximum DC Collector Current | 0.125 |
Maximum Collector Emitter Voltage | -30 V |
Package Type | TO-126 |
Mounting Type | Through Hole |
Maximum Power Dissipation | 10 W |
Minimum DC Current Gain | 100 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | -50 V |
Maximum Emitter Base Voltage | -5 V |
Maximum Operating Frequency | 100 MHz |
Pin Count | 3 |
Number of Elements per Chip | 1 |
Maximum Base Emitter Saturation Voltage | -2 V |
Minimum Operating Temperature | -55 °C |
Width | 2.55mm |
Length | 7.5mm |
Maximum Collector Emitter Saturation Voltage | -0.5 V |
Maximum Operating Temperature | +150 °C |
Height | 10.85mm |
Dimensions | 7.5 x 2.55 x 10.85mm |
