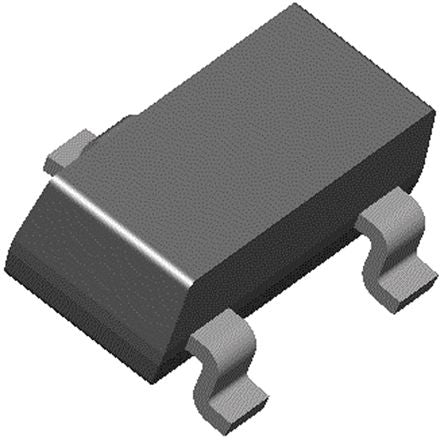

Taiwan Semiconductor TSA884CX RFG PNP Transistor, 150 mA, 500 V, 3-Pin SOT-23 [TSA884CX RFG]; 901-4058
0₫
Mã kho: 9014058
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | PNP |
Maximum DC Collector Current | 150 mA |
Maximum Collector Emitter Voltage | 500 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 300 mW |
Minimum DC Current Gain | 80 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | -500 V |
Maximum Emitter Base Voltage | -5 V |
Maximum Operating Frequency | 1 MHz |
Pin Count | 3 |
Number of Elements per Chip | 1 |
Dimensions | 3.1 x 1.7 x 1.2mm |
Transistor Material | Si |
Width | 1.7mm |
Height | 1.2mm |
Maximum Collector Emitter Saturation Voltage | -0.5 V |
Maximum Base Emitter Saturation Voltage | -0.9 V |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Length | 3.1mm |
