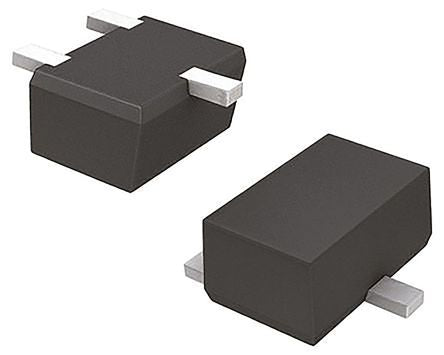

ROHM 2SC5661T2L NPN Transistor, 50 mA, 20 V, 3-Pin SOT-723 [2SC5661T2L]; 128-8822
by ROHM
0₫
Mã kho: 1288822
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | NPN |
Maximum DC Collector Current | 50 mA |
Maximum Collector Emitter Voltage | 20 V |
Package Type | SOT-723 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 150 mW |
Minimum DC Current Gain | 6 |
Transistor Configuration | Common Emitter |
Maximum Collector Base Voltage | 30 V |
Maximum Emitter Base Voltage | 3 V |
Maximum Operating Frequency | 200 MHz |
Pin Count | 3 |
Number of Elements per Chip | 1 |
Width | 0.8mm |
Maximum Collector Emitter Saturation Voltage | 0.5 V |
Dimensions | 1.2 x 0.8 x 0.5mm |
Length | 1.2mm |
Height | 0.5mm |
Maximum Operating Temperature | +150 °C |
