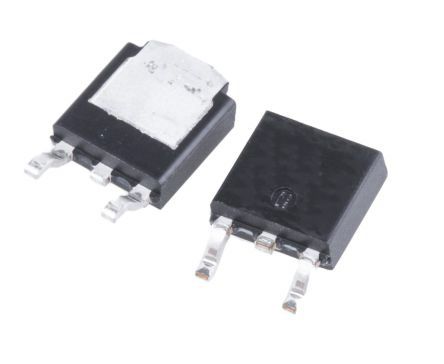

PNP -3.0A -120V Power Transistor [2SAR587D3TL1]; 186-4569
by ROHM
0₫
Mã kho: 1864569
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 0.25 |
| Maximum Collector Emitter Voltage | -120 V |
| Package Type | DPAK |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 10 W |
| Minimum DC Current Gain | 120 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | -120 V |
| Maximum Emitter Base Voltage | -6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Width | 6.4mm |
| Maximum Operating Temperature | +150 °C |
| Length | 6.8mm |
| Maximum Collector Emitter Saturation Voltage | -200 mV |
| Dimensions | 6.8 x 6.4 x 2.3mm |
| Height | 2.3mm |
