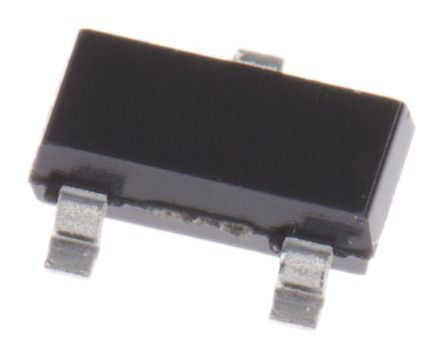

ON Semi SMMBT3904LT1G NPN Transistor, 200 mA, 40 V, 3-Pin SOT-23 [SMMBT3904LT1G]; 184-1095
0₫
Mã kho: 1841095
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 200 mA |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 225 mW |
| Minimum DC Current Gain | 30 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 60 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Width | 1.4mm |
| Minimum Operating Temperature | -55 °C |
| Length | 3.04mm |
| Dimensions | 3.04 x 1.4 x 1.01mm |
| Maximum Collector Emitter Saturation Voltage | 0.3 V dc |
| Transistor Material | Si |
| Maximum Base Emitter Saturation Voltage | 0.95 V dc |
| Automotive Standard | AEC-Q101 |
| Height | 1.01mm |
| Maximum Operating Temperature | +150 °C |
