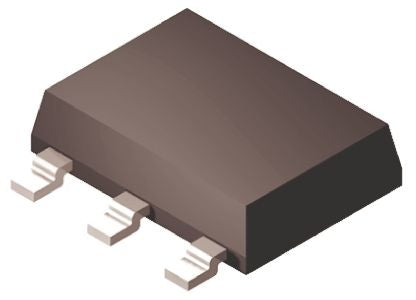

ON Semi NSV60601MZ4T1G NPN Transistor, 6 A, 60 V SOT-223 [NSV60601MZ4T1G]; 790-5488
0₫
Mã kho: 7905488
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 0.25 |
| Maximum Collector Emitter Voltage | 60 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 2 W |
| Minimum DC Current Gain | 50 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 100 V dc |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 1 MHz |
| Pin Count | 3+Tab |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 3.7mm |
| Maximum Collector Emitter Saturation Voltage | 0.3 V dc |
| Height | 1.65mm |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
| Length | 6.7mm |
| Dimensions | 6.7 x 3.7 x 1.65mm |
| Maximum Base Emitter Saturation Voltage | 0.9 V dc |
