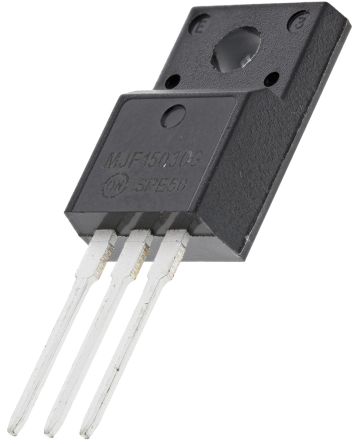

ON Semi MJF15030G NPN Transistor, 8 A, 150 V, 3-Pin TO-220 [MJF15030G]; 545-0315
0₫
Mã kho: 5450315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 0.333333333333333 |
| Maximum Collector Emitter Voltage | 150 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 2 W |
| Minimum DC Current Gain | 20 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 150 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 30 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Height | 9.24mm |
| Maximum Operating Temperature | +150 °C |
| Length | 10.63mm |
| Dimensions | 9.24 x 10.63 x 4.9mm |
| Maximum Collector Emitter Saturation Voltage | 0.5 V |
| Width | 4.9mm |
