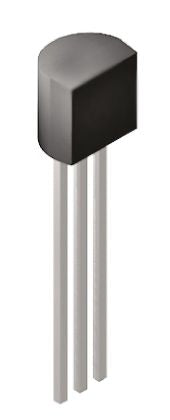

ON Semi KSC945CGTA NPN Transistor, 150 mA, 50 V, 3-Pin TO-92 [KSC945CGTA]; 166-3784
0₫
Mã kho: 1663784
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 150 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 250 mW |
| Minimum DC Current Gain | 40 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 60 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 1 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Saturation Voltage | 0.3 V |
| Dimensions | 4.58 x 3.86 x 4.58mm |
| Width | 3.86mm |
| Length | 4.58mm |
| Height | 4.58mm |
