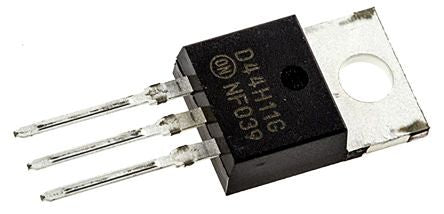

ON Semi D44H11G NPN Transistor, 10 A, 80 V, 3-Pin TO-220AB [D44H11G]; 103-2981
0₫
Mã kho: 1032981
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 0.416666666666667 |
| Maximum Collector Emitter Voltage | 80 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 2 W |
| Minimum DC Current Gain | 40 |
| Transistor Configuration | Single |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 50 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Collector Emitter Saturation Voltage | 1 V |
| Dimensions | 9.28 x 10.28 x 4.82mm |
| Maximum Base Emitter Saturation Voltage | 1.5 V |
| Minimum Operating Temperature | -55 °C |
| Width | 4.82mm |
| Length | 10.28mm |
| Maximum Operating Temperature | +150 °C |
| Height | 9.28mm |
