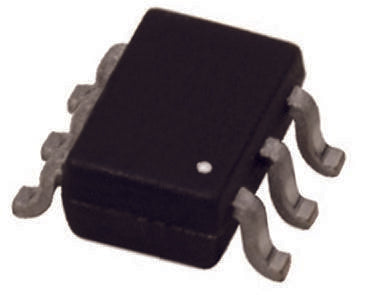

ON Semi CPH6003A-TL-E NPN Transistor, 150 mA, 12 V, 6-Pin CPH [CPH6003A-TL-E]; 791-9383
0₫
Mã kho: 7919383
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 150 mA |
| Maximum Collector Emitter Voltage | 12 V |
| Package Type | CPH |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 800 mW |
| Minimum DC Current Gain | 100 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 20 V |
| Maximum Emitter Base Voltage | 2 V |
| Maximum Operating Frequency | 1 GHz |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Height | 0.9mm |
| Width | 1.6mm |
| Length | 2.9mm |
| Dimensions | 2.9 x 1.6 x 0.9mm |
| Maximum Operating Temperature | +150 °C |
