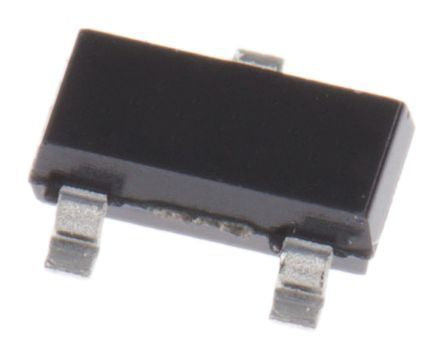

ON Semiconductor, BCW66GLT1G [BCW66GLT1G]; 186-8676
0₫
Mã kho: 1868676
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 800 (Continuous) mA, 1200 (Peak) mA |
| Maximum Collector Emitter Voltage | 45 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Minimum DC Current Gain | 50 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 75 V dc |
| Maximum Emitter Base Voltage | 5 V dc |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Height | 1.01mm |
| Maximum Operating Temperature | +150 °C |
| Maximum Base Emitter Saturation Voltage | 2 V dc |
| Length | 3.04mm |
| Dimensions | 3.04 x 1.4 x 1.01mm |
| Transistor Material | Si |
| Maximum Collector Emitter Saturation Voltage | 0.7 V dc |
| Width | 1.4mm |
| Minimum Operating Temperature | -55 °C |
