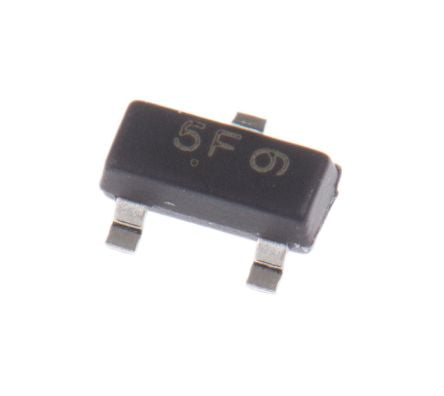

ON Semi BC808-25LT1G PNP Transistor, 500 mA, 25 V, 3-Pin SOT-23 [BC808-25LT1G]; 145-3351
0₫
Mã kho: 1453351
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 25 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 225 mW |
| Minimum DC Current Gain | 160 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | -30 V |
| Maximum Emitter Base Voltage | -5 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Base Emitter Saturation Voltage | -1.2 V |
| Width | 2.64mm |
| Dimensions | 3.04 x 2.64 x 1.11mm |
| Length | 3.04mm |
| Maximum Collector Emitter Saturation Voltage | -0.7 V |
| Height | 1.11mm |
| Maximum Operating Temperature | +150 °C |
