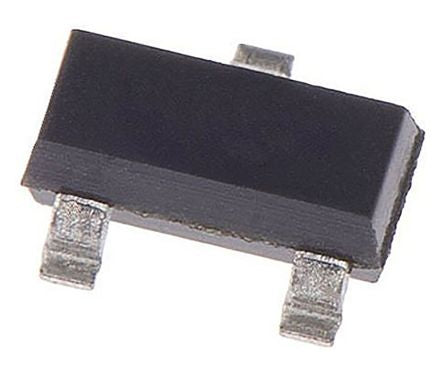

![ON Semiconductor 30C02CH-TL-E 1453931](http://nguyenxuong.com/cdn/shop/products/R7925189-01_444x365.jpg?v=1594127116)
ON Semi 30C02CH-TL-E NPN Transistor, 700 mA, 30 V, 3-Pin CPH [30C02CH-TL-E]; 145-3931
0₫
Mã kho: 1453931
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | NPN |
Maximum DC Collector Current | 700 mA |
Maximum Collector Emitter Voltage | 30 V |
Package Type | CPH |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 700 mW |
Minimum DC Current Gain | 300 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | 40 V |
Maximum Emitter Base Voltage | 5 V |
Maximum Operating Frequency | 540 MHz |
Pin Count | 3 |
Number of Elements per Chip | 1 |
Width | 1.6mm |
Maximum Base Emitter Saturation Voltage | 1.2 V |
Dimensions | 2.9 x 1.6 x 0.9mm |
Height | 0.9mm |
Maximum Operating Temperature | +150 °C |
Length | 2.9mm |
Maximum Collector Emitter Saturation Voltage | 190 mV |
