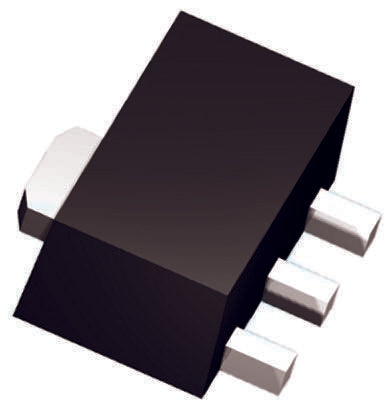

ON Semi 2SC3647T-TD-E NPN Transistor, 2 A, 100 V, 3-Pin PCP [2SC3647T-TD-E]; 145-3522
0₫
Mã kho: 1453522
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | NPN |
Maximum DC Collector Current | 0.0833333333333333 |
Maximum Collector Emitter Voltage | 100 V |
Package Type | PCP |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 1.5 W |
Minimum DC Current Gain | 200 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | 120 V |
Maximum Emitter Base Voltage | 6 V |
Maximum Operating Frequency | 1 MHz |
Pin Count | 3 |
Number of Elements per Chip | 1 |
Dimensions | 4.5 x 2.5 x 1.5mm |
Maximum Collector Emitter Saturation Voltage | 0.4 V |
Maximum Base Emitter Saturation Voltage | 1.2 V |
Width | 2.5mm |
Height | 1.5mm |
Maximum Operating Temperature | +150 °C |
Length | 4.5mm |
