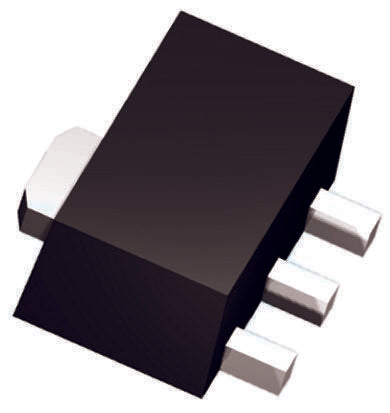

ON Semi 2SA1417T-TD-E PNP Transistor, 2 A, 100 V, 3-Pin PCP [2SA1417T-TD-E]; 145-3872
0₫
Mã kho: 1453872
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | PNP |
Maximum DC Collector Current | 0.0833333333333333 |
Maximum Collector Emitter Voltage | 100 V |
Package Type | PCP |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 1.5 W |
Minimum DC Current Gain | 100 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | -120 V |
Maximum Emitter Base Voltage | -6 V |
Maximum Operating Frequency | 120 MHz |
Pin Count | 3 |
Number of Elements per Chip | 1 |
Dimensions | 4.5 x 2.5 x 1.5mm |
Maximum Collector Emitter Saturation Voltage | -0.6 V |
Height | 1.5mm |
Length | 4.5mm |
Width | 2.5mm |
Maximum Base Emitter Saturation Voltage | -1.2 V |
Maximum Operating Temperature | +150 °C |
