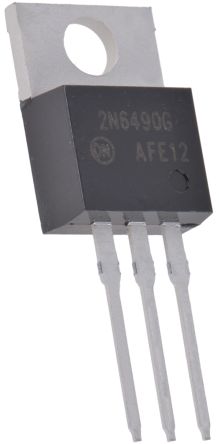

ON Semi 2N6490G PNP Transistor, 15 A, 60 V, 3-Pin TO-220 [2N6490G]; 145-3153
0₫
Mã kho: 1453153
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 15 A |
| Maximum Collector Emitter Voltage | 60 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 75 W |
| Minimum DC Current Gain | 20 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 70 V dc |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 5 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Width | 4.82mm |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 10.28 x 4.82 x 15.75mm |
| Height | 15.75mm |
| Maximum Collector Emitter Saturation Voltage | 3.5 V dc |
| Length | 10.28mm |
| Maximum Operating Temperature | +150 °C |
