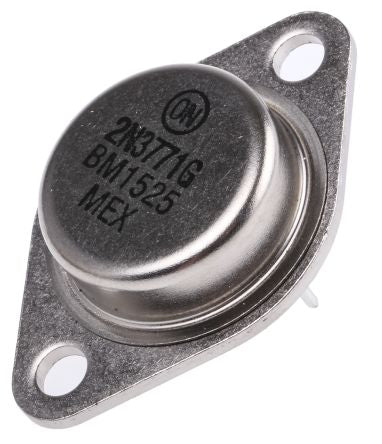

ON Semi 2N3771G NPN Transistor, 30 A, 40 V, 2-Pin TO-204AA [2N3771G]; 124-9938
0₫
Mã kho: 1249938
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | NPN |
Maximum DC Collector Current | 30 A |
Maximum Collector Emitter Voltage | 40 V |
Package Type | TO-204AA |
Mounting Type | Through Hole |
Maximum Power Dissipation | 150 W |
Minimum DC Current Gain | 5 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | 50 V |
Maximum Emitter Base Voltage | 5 V |
Maximum Operating Frequency | 50 kHz |
Pin Count | 2 |
Number of Elements per Chip | 1 |
Dimensions | 39.37 x 26.67 x 8.51mm |
Length | 39.37mm |
Height | 8.51mm |
Minimum Operating Temperature | -65 °C |
Maximum Collector Emitter Saturation Voltage | 4 V |
Maximum Operating Temperature | +200 °C |
Width | 26.67mm |
