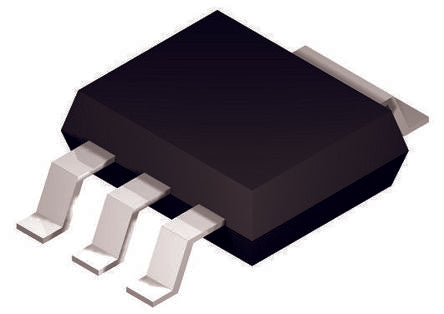

Nexperia BF722,115 NPN Transistor, 100 mA, 250 V SOT-223 [BF722,115]; 165-9991
by Nexperia
0₫
Mã kho: 1659991
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 250 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.2 W |
| Minimum DC Current Gain | 50 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 250 V |
| Maximum Emitter Base Voltage | 5 V |
| Pin Count | 3 + Tab |
| Number of Elements per Chip | 1 |
| Height | 1.7mm |
| Length | 6.7mm |
| Maximum Collector Emitter Saturation Voltage | 0.6 V |
| Maximum Operating Temperature | +150 °C |
| Width | 3.7mm |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 6.7 x 3.7 x 1.7mm |
