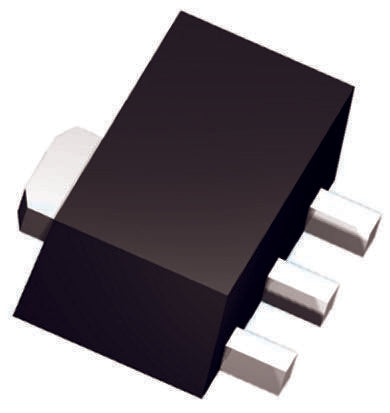

NXP BCX55-16,115 NPN Transistor, 1 A, 60 V, 4-Pin UPAK [BCX55-16,115]; 484-5188
by Nexperia
0₫
Mã kho: 4845188
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 0.0416666666666667 |
| Maximum Collector Emitter Voltage | 60 V |
| Package Type | UPAK |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.25 W |
| Minimum DC Current Gain | 100 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 60 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 180 MHz |
| Pin Count | 4 |
| Number of Elements per Chip | 1 |
| Height | 1.6mm |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 1.6 x 4.6 x 2.6mm |
| Width | 2.6mm |
| Length | 4.6mm |
| Minimum Operating Temperature | -65 °C |
| Maximum Collector Emitter Saturation Voltage | 0.5 V |
