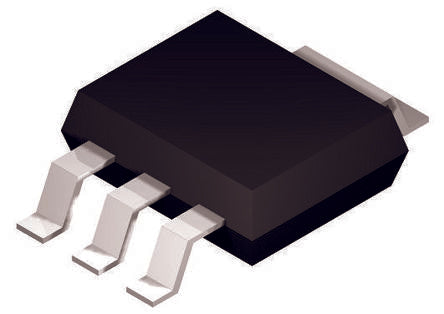

Nexperia BCP51,115 PNP Transistor, 1 A, 45 V, 4-Pin SOT-223 [BCP51,115]; 508-416
by Nexperia
0₫
Mã kho: 508416
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | PNP |
Maximum DC Collector Current | 0.0416666666666667 |
Maximum Collector Emitter Voltage | 45 V |
Package Type | SOT-223 (SC-73) |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 1 W |
Minimum DC Current Gain | 40 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | 45 V |
Maximum Emitter Base Voltage | 5 V |
Maximum Operating Frequency | 145 MHz |
Pin Count | 4 |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Length | 6.7mm |
Dimensions | 1.7 x 6.7 x 3.7mm |
Width | 3.7mm |
Height | 1.7mm |
Minimum Operating Temperature | -65 °C |
Maximum Collector Emitter Saturation Voltage | 0.5 V |
