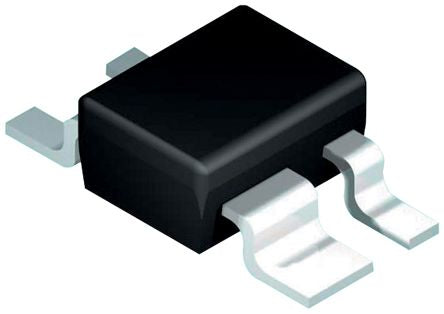

Infineon BFP460H6327XTSA1 NPN Transistor, 70 mA, 15 V, 4-Pin SOT-343 [BFP460H6327XTSA1]; 166-1100
by Infineon
0₫
Mã kho: 1661100
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 70 mA |
| Maximum Collector Emitter Voltage | 15 V |
| Package Type | SOT-343 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 230 mW |
| Minimum DC Current Gain | 90 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 15 V |
| Maximum Emitter Base Voltage | 1.5 V |
| Pin Count | 4 |
| Number of Elements per Chip | 1 |
| Dimensions | 2 x 1.25 x 0.8mm |
| Length | 2mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.8mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -65 °C |
| Width | 1.25mm |
