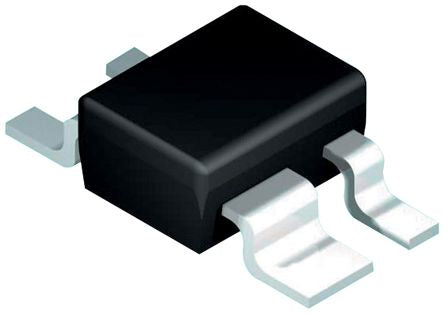

Infineon BFP460H6327XTSA1 NPN Transistor, 70 mA, 15 V, 4-Pin SOT-343 [BFP460H6327XTSA1]; 110-7100
by Infineon
0₫
Mã kho: 1107100
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | NPN |
Maximum DC Collector Current | 70 mA |
Maximum Collector Emitter Voltage | 15 V |
Package Type | SOT-343 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 230 mW |
Minimum DC Current Gain | 90 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | 15 V |
Maximum Emitter Base Voltage | 1.5 V |
Pin Count | 4 |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Dimensions | 2 x 1.25 x 0.8mm |
Width | 1.25mm |
Height | 0.8mm |
Maximum Operating Temperature | +150 °C |
Length | 2mm |
Minimum Operating Temperature | -65 °C |
