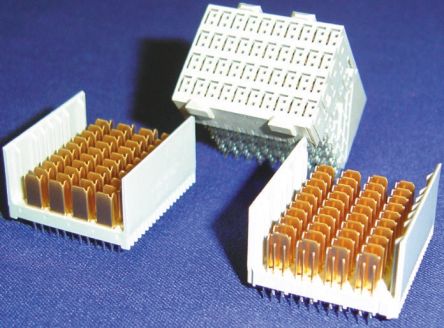

TE Connectivity Z-PACK HM-Zd Series 2.5mm Pitch 2 Pair, High Speed Hard Metric Backplane Connector, Straight, 10 Column [6469025-1]; 165-0996
0₫
Mã kho: 1650996
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | High Speed Hard Metric, 2 Pair |
| Number of Contacts | 40 |
| Number of Columns | 10 |
| Number of Rows | 4 |
| Body Orientation | Straight |
| Housing Material | PE |
| Pitch | 2.5mm |
| Mounting Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
| Current Rating | 700mA |
| Voltage Rating | 250 V ac |
| Termination Method | Press-In |
| Series | Z-PACK HM-Zd |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +105°C |
