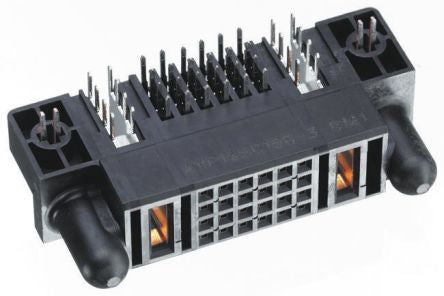

TE Connectivity XL Series 2.54mm Pitch Multi-Beam Backplane Connector, Female, Right Angle, 26 Way [6450160-3]; 164-7530
0₫
Mã kho: 1647530
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | Multi-Beam |
| Gender | Female |
| Number of Contacts | 26 |
| Body Orientation | Right Angle |
| Housing Material | Thermoplastic |
| Pitch | 2.54mm |
| Contact Material | Copper |
| Mounting Type | Through Hole |
| Contact Plating | Gold over Nickel |
| Voltage Rating | 60 V ac, 200 V dc |
| Termination Method | Solder |
| Series | XL |
