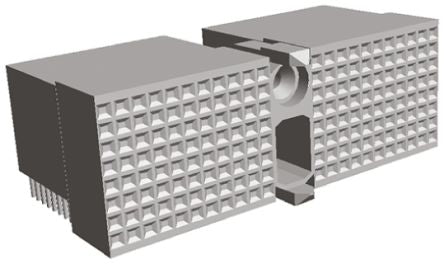

TE Connectivity Z-PACK HM Series 2mm Pitch Hard Metric Type D Backplane Connector, Female, Right Angle, 25 Column, 8 Row [5646442-1]; 164-3622
0₫
Mã kho: 1643622
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | Hard Metric Type D |
| Gender | Female |
| Number of Contacts | 176 |
| Number of Columns | 25 |
| Number of Rows | 8 |
| Body Orientation | Right Angle |
| Housing Material | Glass Fibre Reinforced PBT |
| Pitch | 2mm |
| Contact Material | Phosphor Bronze |
| Mounting Type | Through Hole |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Voltage Rating | 750 V ac |
| Termination Method | Solder |
| Series | Z-PACK HM |
| Series Number | 5646442 |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
