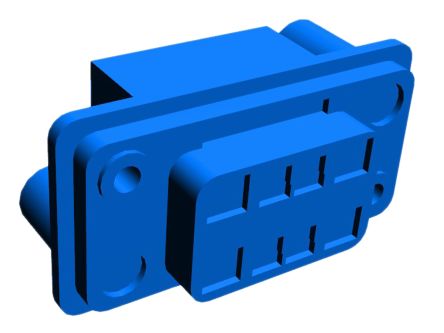

TE Connectivity 5mm Pitch Blind Mate Drawer Connector Backplane Connector, Female, Straight, 4 Column, 2 Row, 8 Way [5172070-1]; 909-7230
0₫
Mã kho: 9097230
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | Blind Mate Drawer Connector |
| Gender | Female |
| Number of Contacts | 8 |
| Number of Columns | 4 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Housing Material | PBT |
| Pitch | 5mm |
| Contact Plating | Nickel |
| Voltage Rating | 250 V ac |
| Termination Method | Plug-In |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +120°C |
