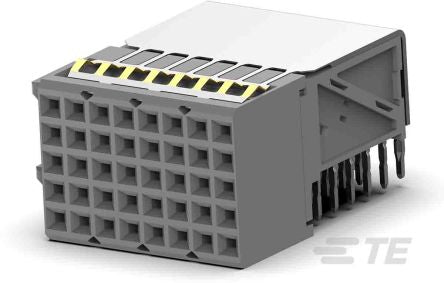

BACKPLANE 2MM HM FEMALE ASSY, COL8 [2336682-1]; 188-8312
0₫
Mã kho: 1888312
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | Hard Metric |
| Gender | Female |
| Number of Contacts | 40 |
| Number of Columns | 8 |
| Number of Rows | 5 |
| Body Orientation | Right Angle |
| Housing Material | Thermoplastic |
| Pitch | 2mm |
| Contact Material | Phosphor Bronze |
| Mounting Type | Through Hole |
| Contact Plating | Gold, Nickel, Tin |
| Current Rating | 1.5A |
| Termination Method | Press Fit |
| Series | Z-PACK HM |
| Series Number | 2336682 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
