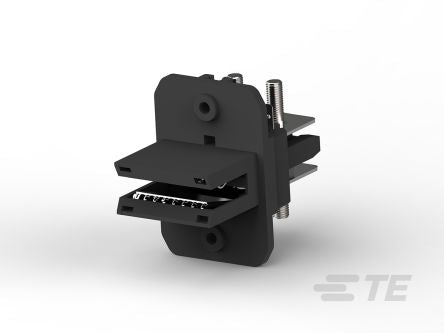

DUAL-POLE 500A RACK BUS BAR POWER CONN [2204866-1]; 185-1044
0₫
Mã kho: 1851044
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | Power |
| Gender | Female |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Pitch | 14mm |
| Contact Material | Copper Alloy |
| Mounting Type | Through Hole |
| Current Rating | 500A |
| Voltage Rating | 48 V ac/dc |
| Termination Method | Screw |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -45°C |
