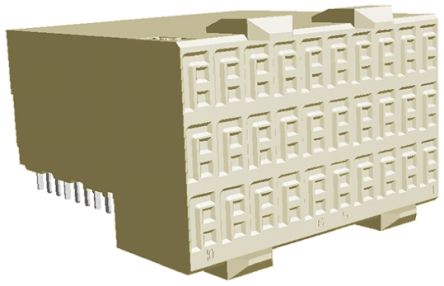

TE Connectivity Z-PACK HM-Zd Series 2.5mm Pitch 3 Pair, High Speed Hard Metric Backplane Connector, Female, Right Angle [1469081-1]; 161-8725
0₫
Mã kho: 1618725
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | High Speed Hard Metric, 3 Pair |
| Gender | Female |
| Number of Contacts | 60 |
| Number of Columns | 10 |
| Number of Rows | 6 |
| Body Orientation | Right Angle |
| Housing Material | Glass Fibre Reinforced PET |
| Pitch | 2.5mm |
| Contact Material | Copper Nickel Silicon Alloy |
| Mounting Type | Through Hole |
| Contact Plating | Gold over Nickel |
| Current Rating | 700mA |
| Voltage Rating | 250 V ac |
| Termination Method | Solder |
| Series | Z-PACK HM-Zd |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -65°C |
