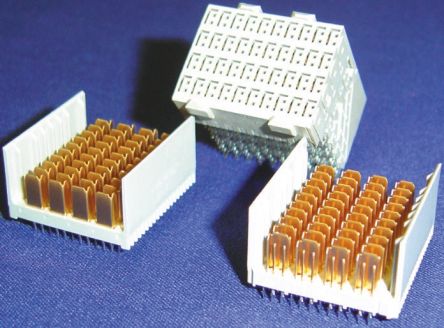

TE Connectivity Z-PACK HM-Zd Series 2.5mm Pitch 4 Pair, High Speed Hard Metric Backplane Connector, Male, Straight [1469002-1]; 165-0427
0₫
Mã kho: 1650427
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | High Speed Hard Metric, 4 Pair |
| Gender | Male |
| Number of Contacts | 80 |
| Number of Columns | 10 |
| Number of Rows | 8 |
| Body Orientation | Straight |
| Housing Material | PET |
| Pitch | 2.5mm |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
| Termination Method | Press-In |
| Series | Z-PACK HM-Zd |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +105°C |
