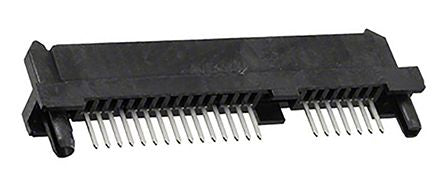

Molex 87779 Series 1.27mm Pitch Backplane Connector, Female, Vertical, 1 Row, 22 Way [87779-1001]; 167-6400
by Molex
0₫
Mã kho: 1676400
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| Number of Contacts | 22 |
| Number of Rows | 1 |
| Body Orientation | Vertical |
| Housing Material | Liquid Crystal Polymer |
| Pitch | 1.27mm |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Current Rating | 1.5A |
| Voltage Rating | 30 V |
| Termination Method | Solder |
| Series | 87779 |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
